URNDT HB5 Series Industrial Joystick Endoscope



Overview

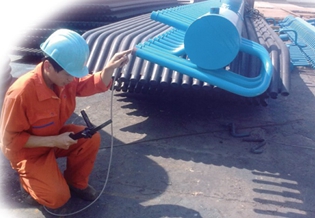

The HB5 series industrial endoscope incorporates optics, precision mechanism, electronic and camera technology in one system and is ideal for flaw inspection in restricted spaces that could not normally be seen with conventional NDT instruments. The display allows images and video in the inspection process to be saved and replayed.



Features

●5inch color LCD screen, 720*480pixels, direction of view more than 160°

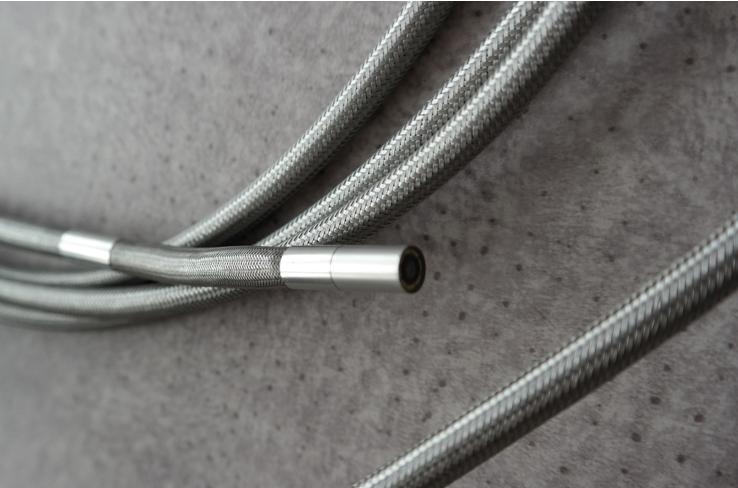

● Probe diameter: 4.5mm, 6mm, 8mm, 10mm (optional)

● Sensor: CCD/CMOS

● Working length: 1meter – 5meter (optional)

● FOV: 95°

● Video Resolution: 420000pixels

● DOF: 10-100mm



● Joystick Control

● Braid: Stainless steel braid / Tungsten Braid

●Articulation range: up/down 110°, 120°; left/right 160°, 170°

● Adjustable LEDs



●8000mAh Li-battery up to 5-8 hrs operation time

● Weight: 2kgs

● Waterproof: IP67, IP 61

● Environment temperature: -10°~50°

●9Languages
